HOME > Shopping > RA 2.0 Balanced
Mouse over to zoom in

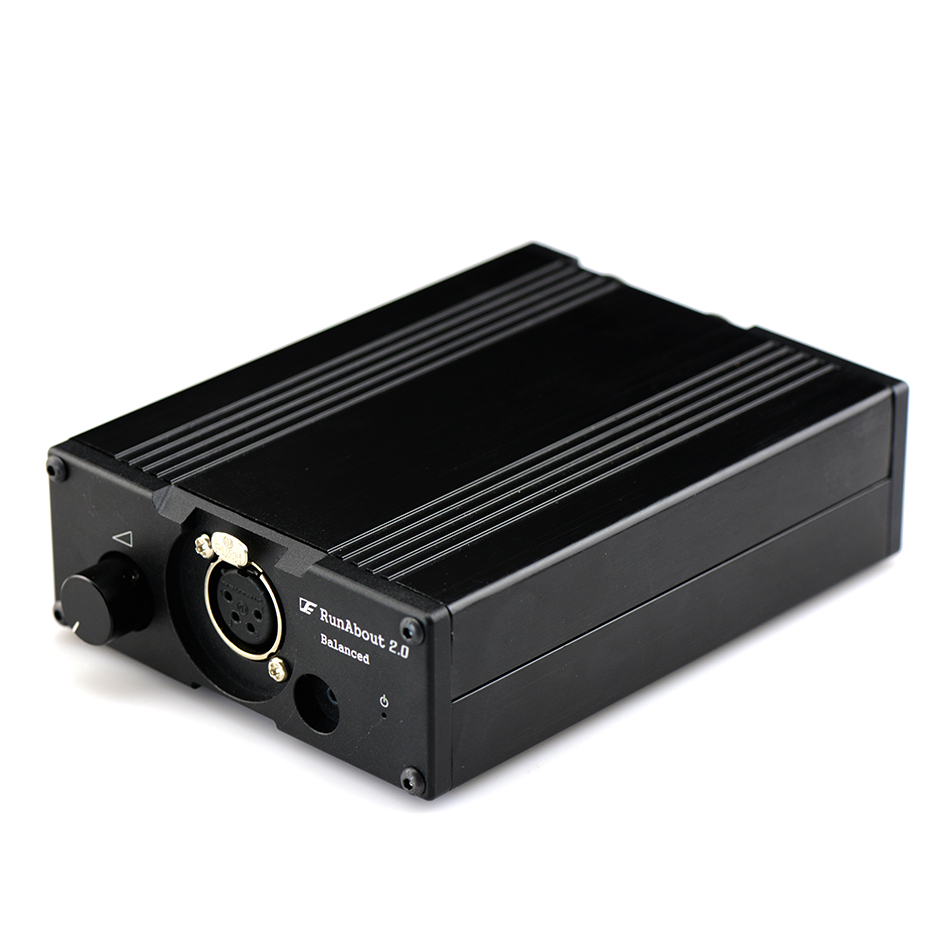

RA 2.0 Balanced
USD
( 0 Points required )
Editions
Standard Edition
Please select a Editions
Quantity
piece (999 pieces available)
Sorry , Out of Stock
Product Details
Specifications

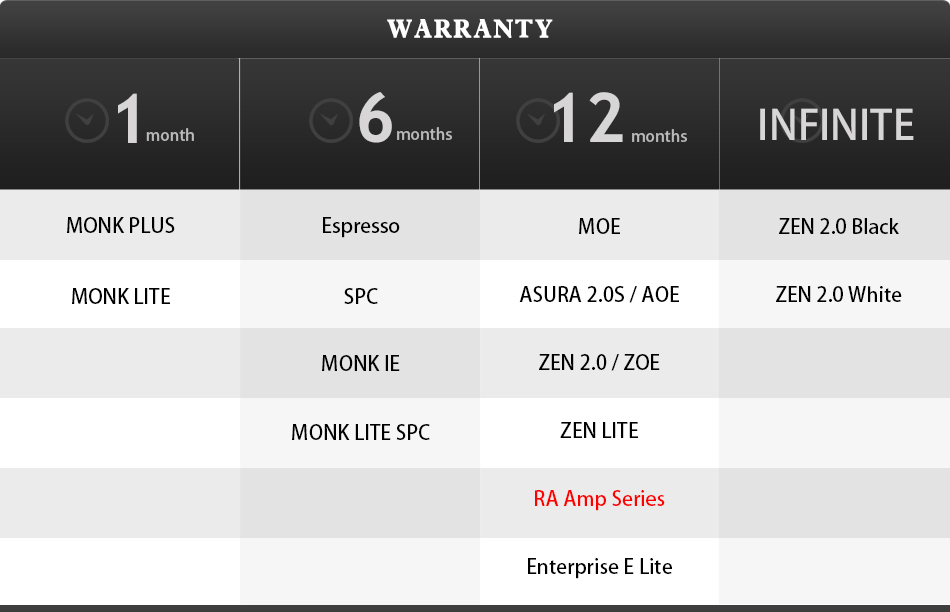

Warranty & Returns
FAQ
Reviews


———————— Specifications ————————

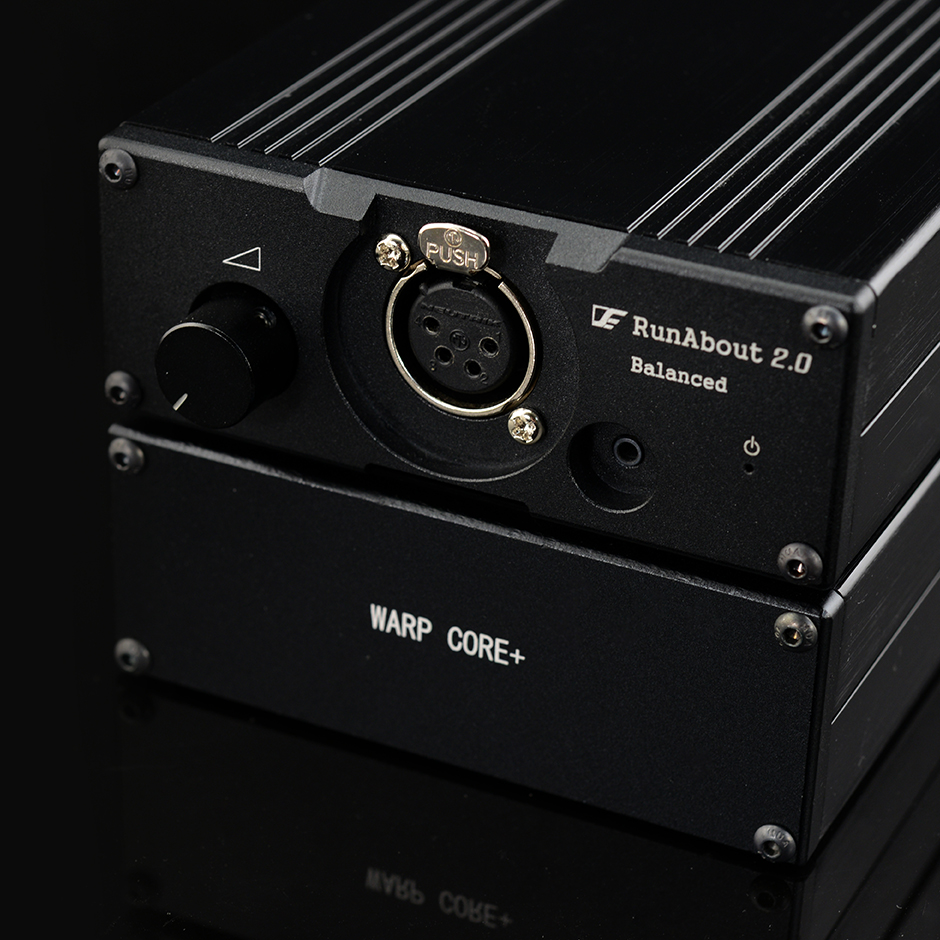

Model:RunAbout 2.0 BAL

Connector Complement:

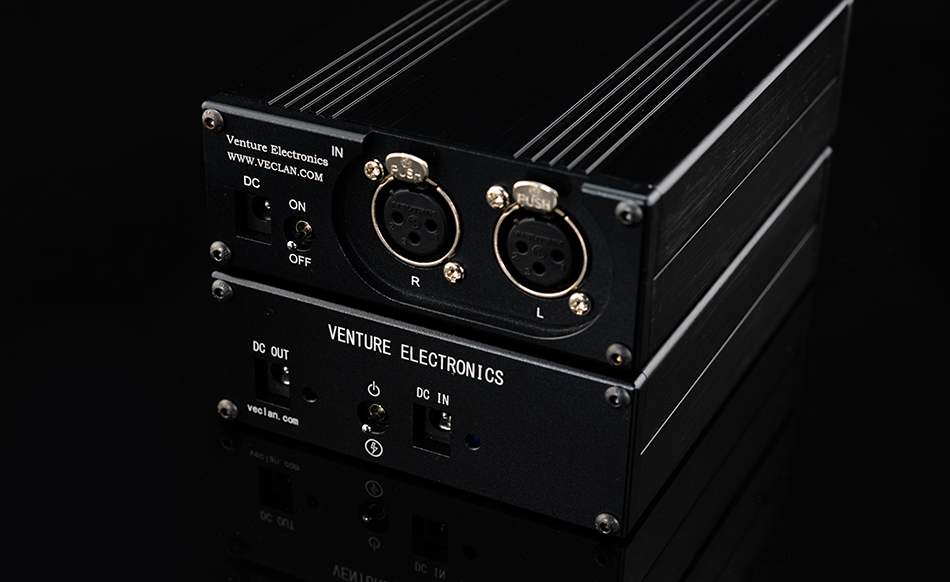

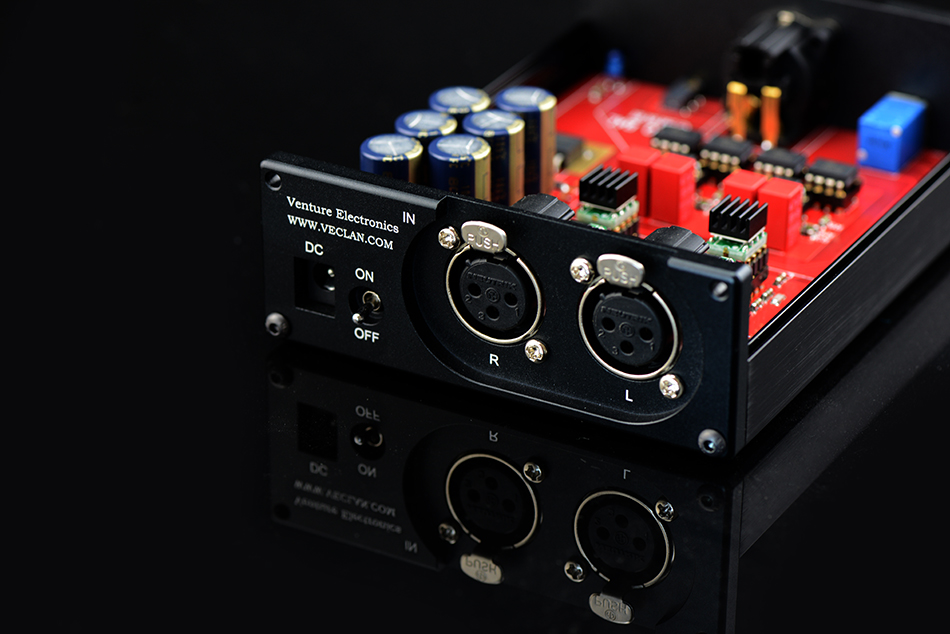

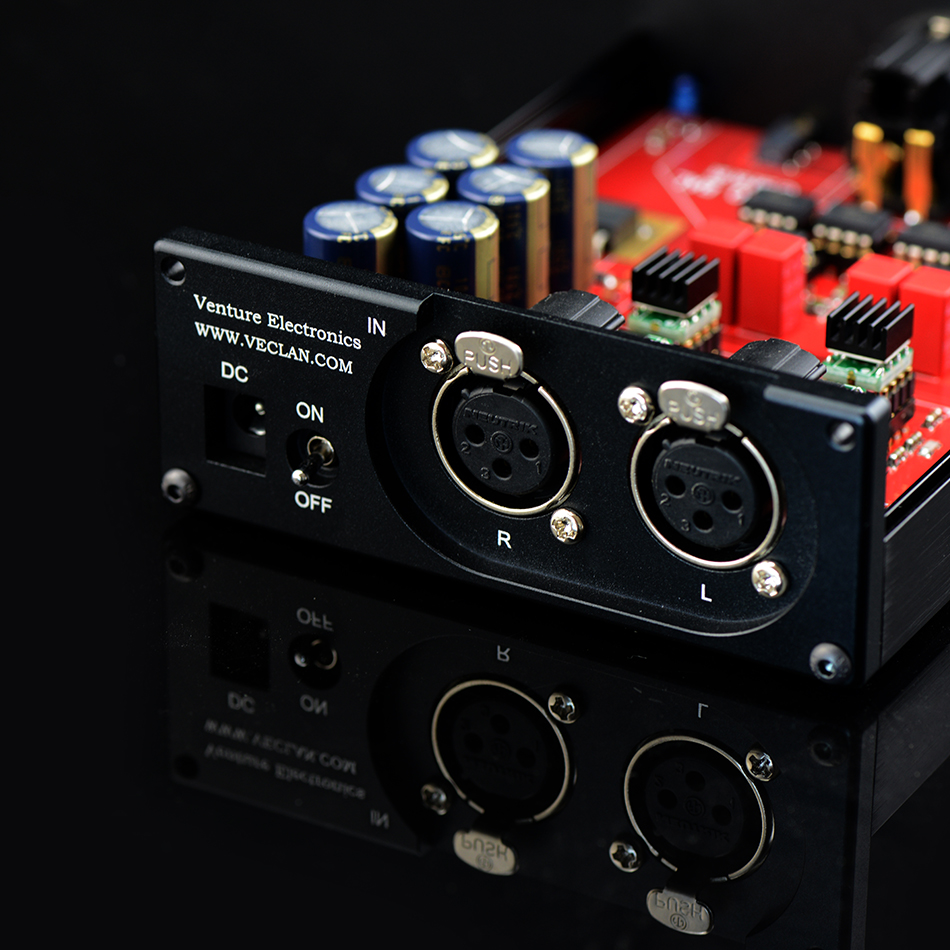

2×3 pin XLR female jack for Input

1×4 pin XLR female jack for Output

1×2.5mm TRRS jack for Output

1×DC005 power jack for DC adapter

Frequency Response:20Hz-20KHz,±0.2dB

Maximum Current Output:0.5A

Maximum Voltage Output:8.1V RMS

Maximum Power Output,32ohm:2.1W RMS per channel

Maximum Power Output,300ohm:220mW RMS per channel

Maximum Power Output,600ohm:110mW RMS per channel

THD:≤0.015%,20Hz-20KHz,1V RMS

IMD:≤0.027%,1V RMS

SNR:≥100dB,1V RMS,unweighted,gain=12.7dB

Crosstalk:≥97dB,20Hz-20KHz

Output Impedance:0.3ohm

Gain:4.3(12.7dB)

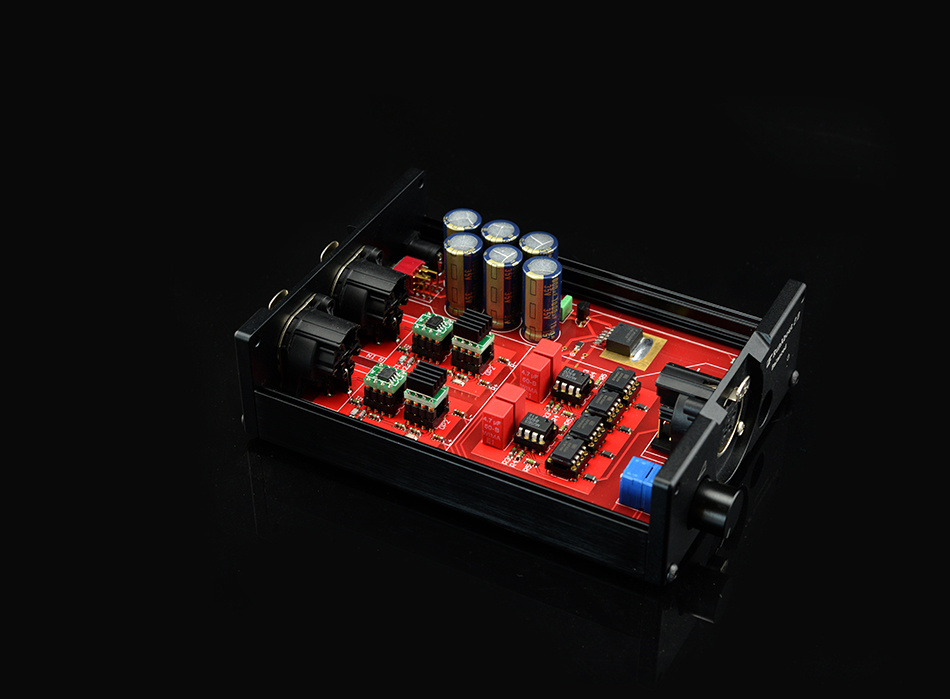

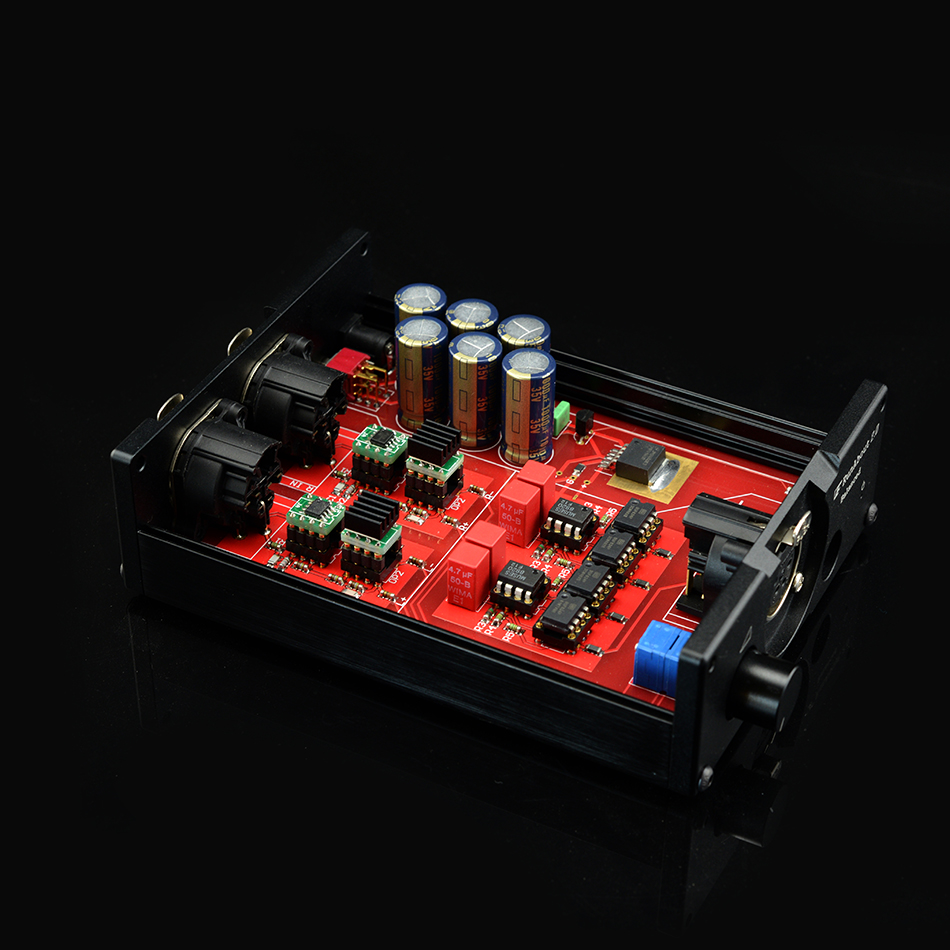

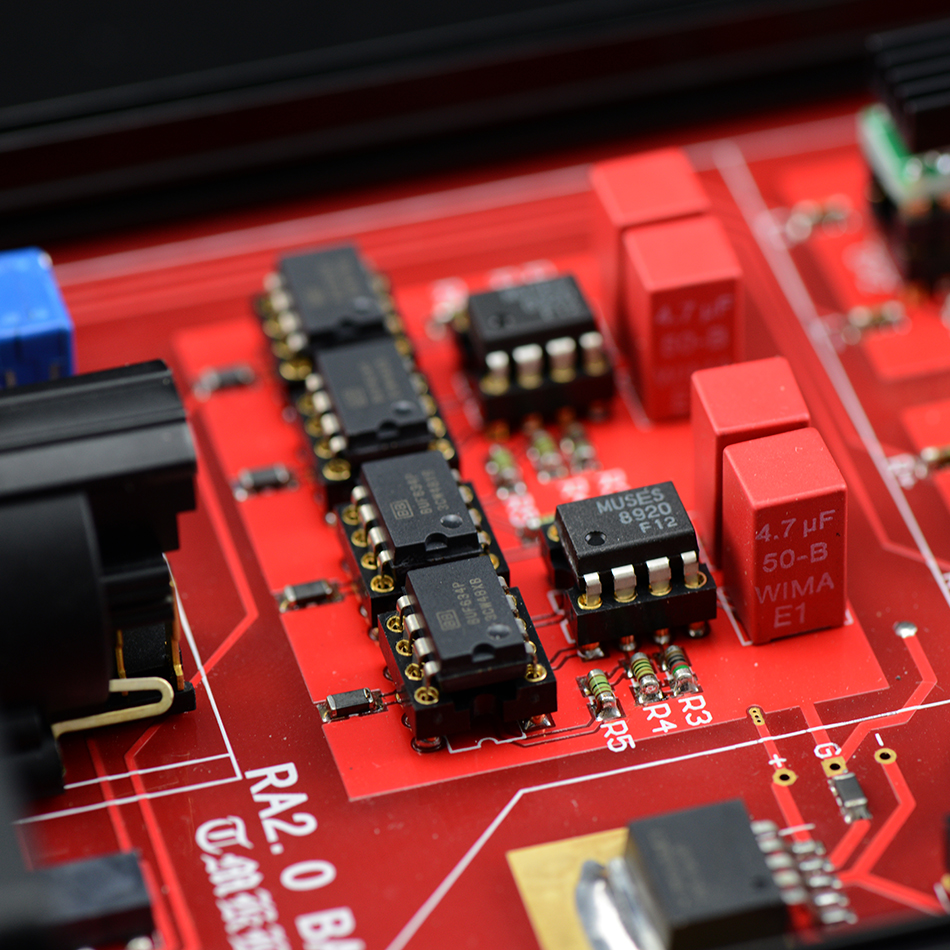

Topology:PREAMP+OP+BUF,dual mono,precision virtual ground reference,isolated power supply

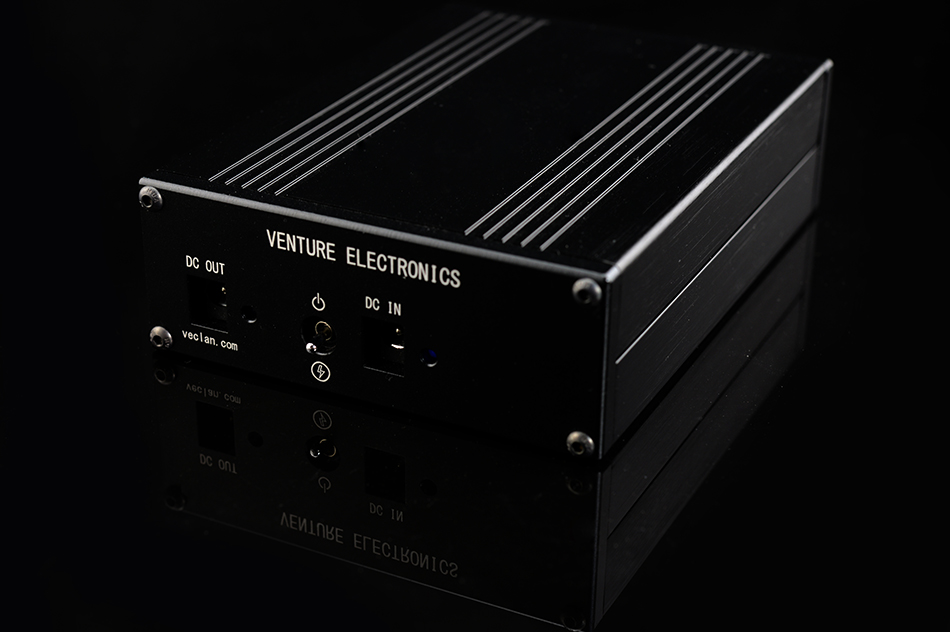

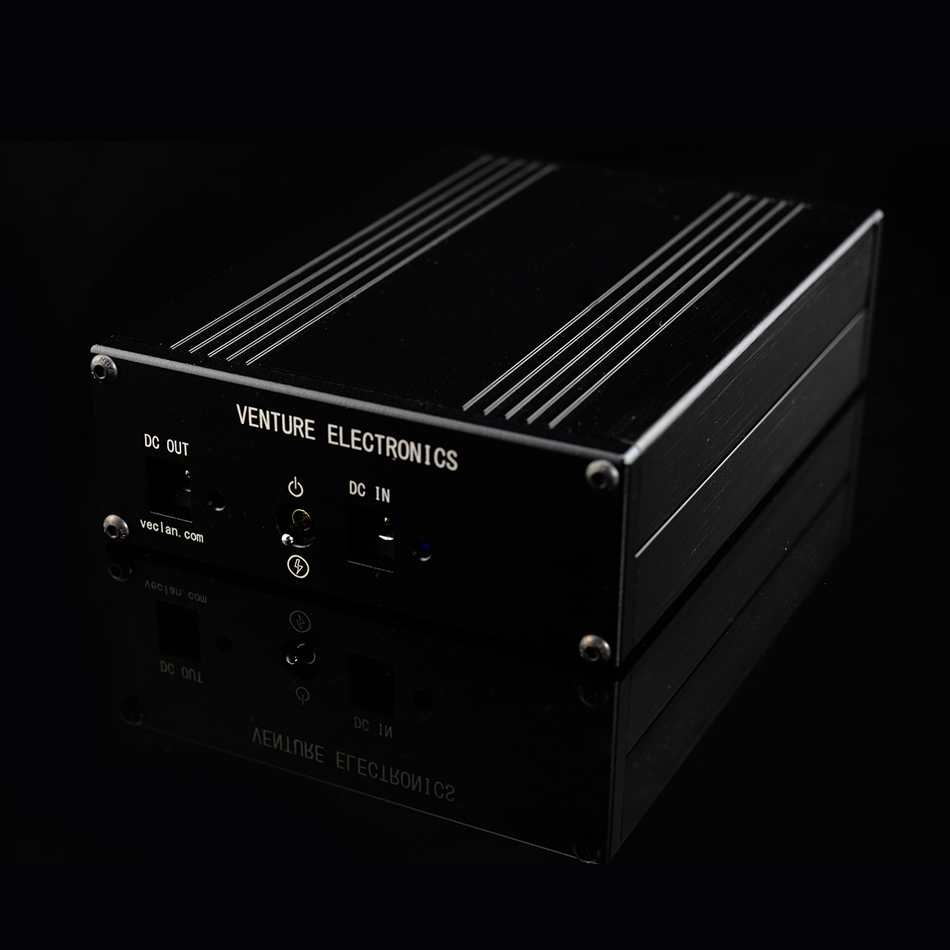

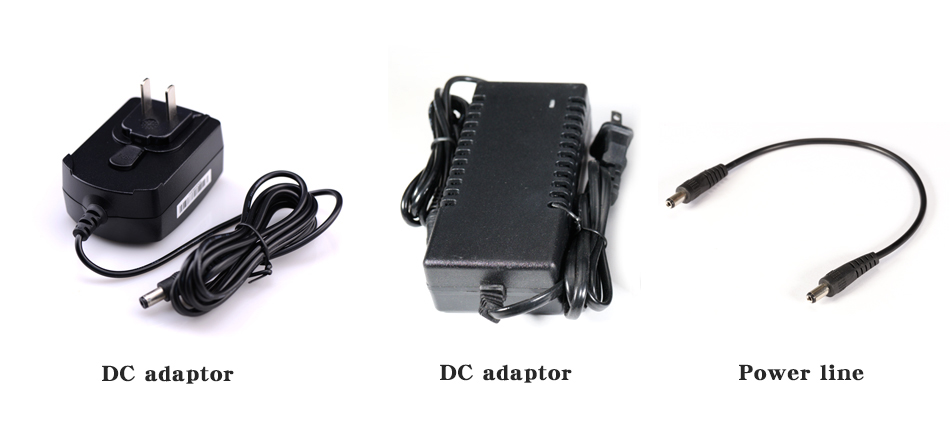

Power Supply:25V POWER BOX,or 18V DC adapter

Power Consumption:0.22W

Size:5.59×4.13×3.31(in,with POWER BOX)

Weight:460g(RA2.0B),1260g(with POWER BOX)


______________________________________________________________________________________



We may ship your package by 4PX Express.

Because it can ship battery.

You can track it on en.4px.com






Model:                                                             RunAbout 2.0 BAL

Connector Complement:                                 2×3 pin XLR female jack for Input     1×4 pin XLR female jack for Output

                                                                         1×2.5mm TRRS jack for Output  1×DC005 power jack for DC adapter

Frequency Response:                                     20Hz-20KHz,±0.2dB

Maximum Current Output:                            0.5A

Maximum Voltage Output:                             8.1V RMS

Maximum Power Output,32ohm:                2.1W RMS per channel

Maximum Power Output,300ohm:              220mW RMS per channel

Maximum Power Output,600ohm:              110mW RMS per channel

THD:                                                               ≤0.015%,20Hz-20KHz,1V RMS

IMD:                                                               ≤0.027%,1V RMS

SNR:                                                               ≥100dB,1V RMS,unweighted,gain=12.7dB

Crosstalk:                                                       ≥97dB,20Hz-20KHz

Output Impedance:                                       0.3ohm

Gain:                                                              4.3(12.7dB)

Topology:                                                      PREAMP+OP+BUF,dual mono,precision virtual ground reference,isolated power supply

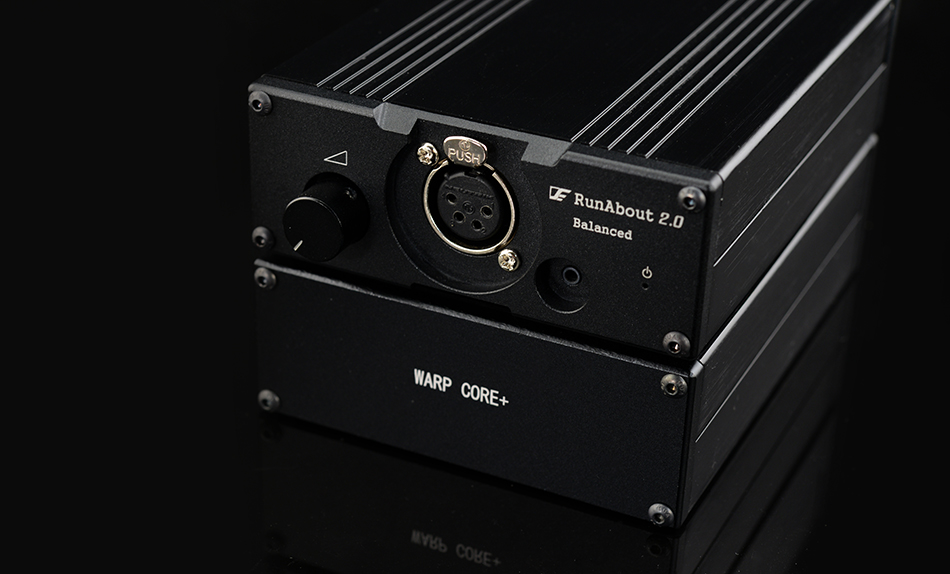

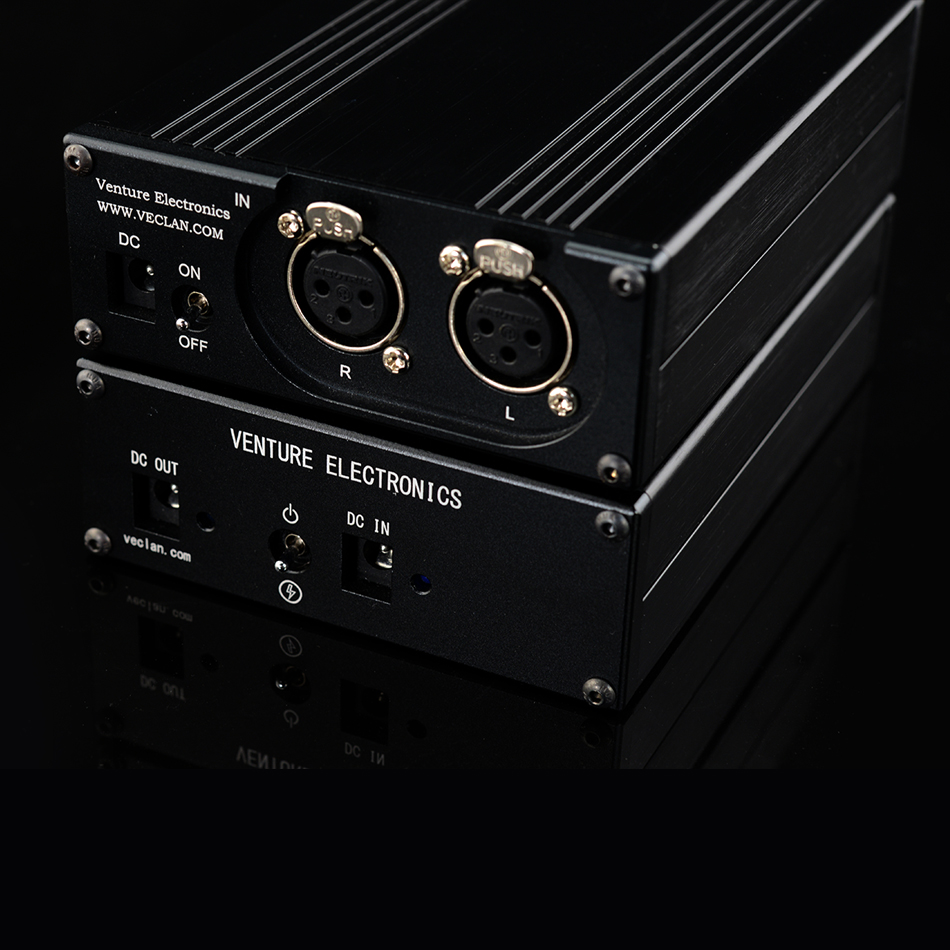

Power Supply:                                               25V POWER BOX,or 18V DC adapter

Power Consumption:                                    0.22W

Size:                                                               5.59×4.13×3.31(in,with POWER BOX)

Weight:                                                          460g(RA2.0B),1260g(with POWER BOX)
