HOME > Shopping > RunAbout 2.0
Mouse over to zoom in

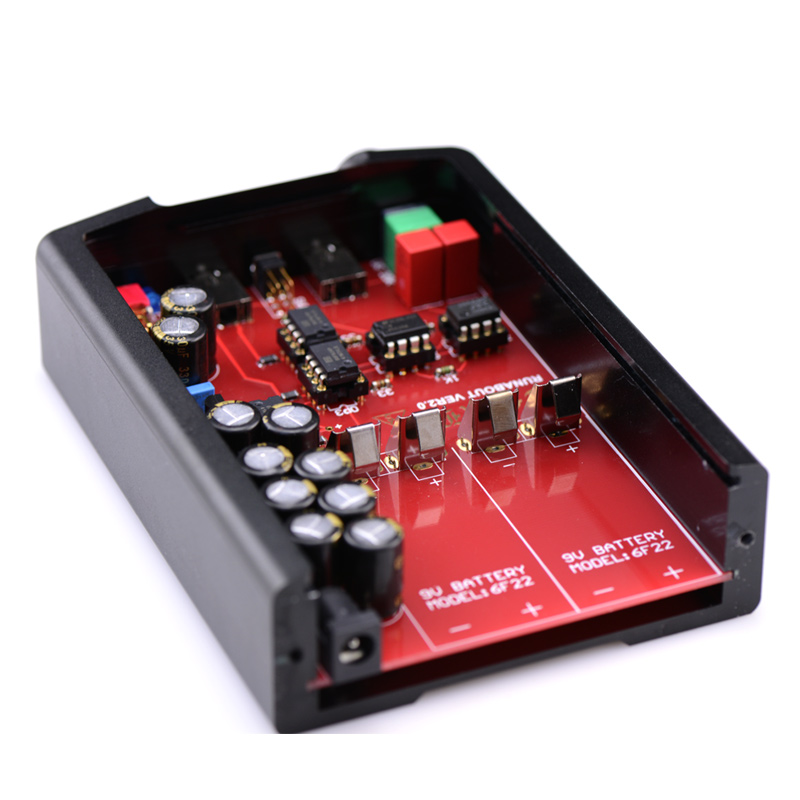

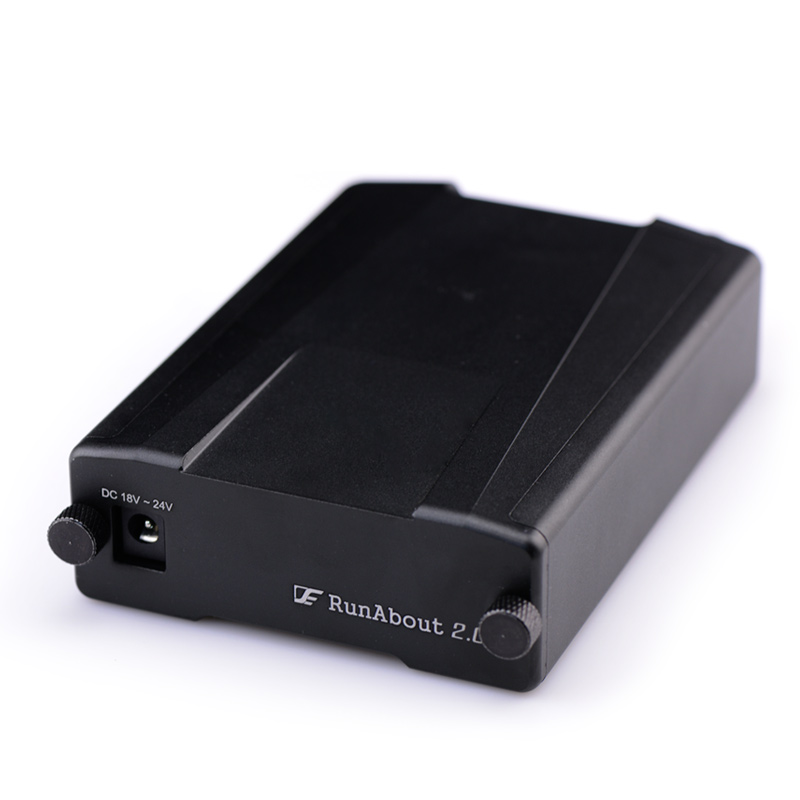

RunAbout 2.0
Unbeliveable sound in the miracle box
USD
( 0 Points required )
Editions
Standard Edition
Please select a Editions
Quantity
piece (999 pieces available)
Sorry , Out of Stock
Product Details
Specifications

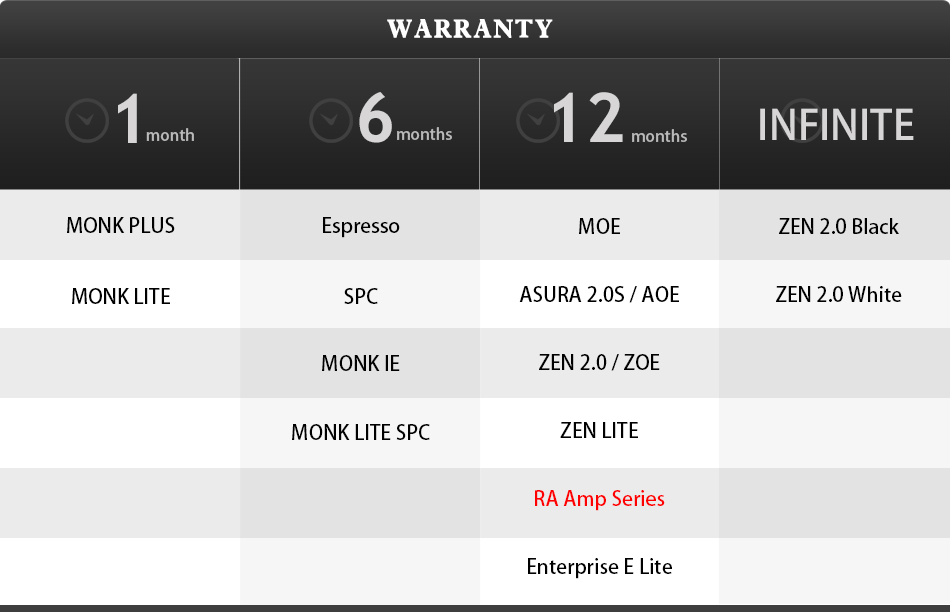

Warranty & Returns
FAQ
Reviews




———————— Specifications ————————

Model:RunAbout 2.0

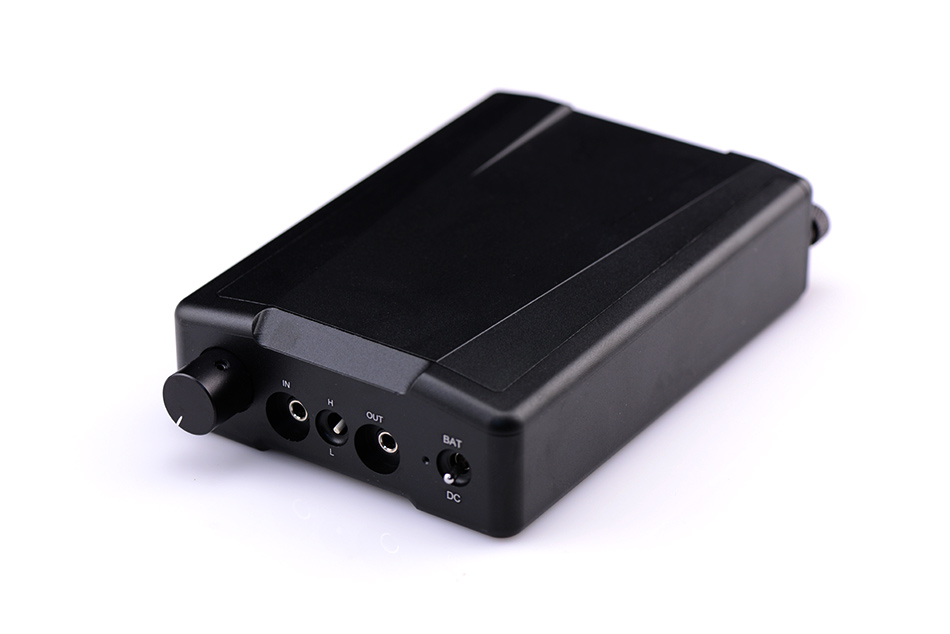

Connector Complement:

1×3.5mm stereo jack for Input

1×3.5mm stereo jack for Output

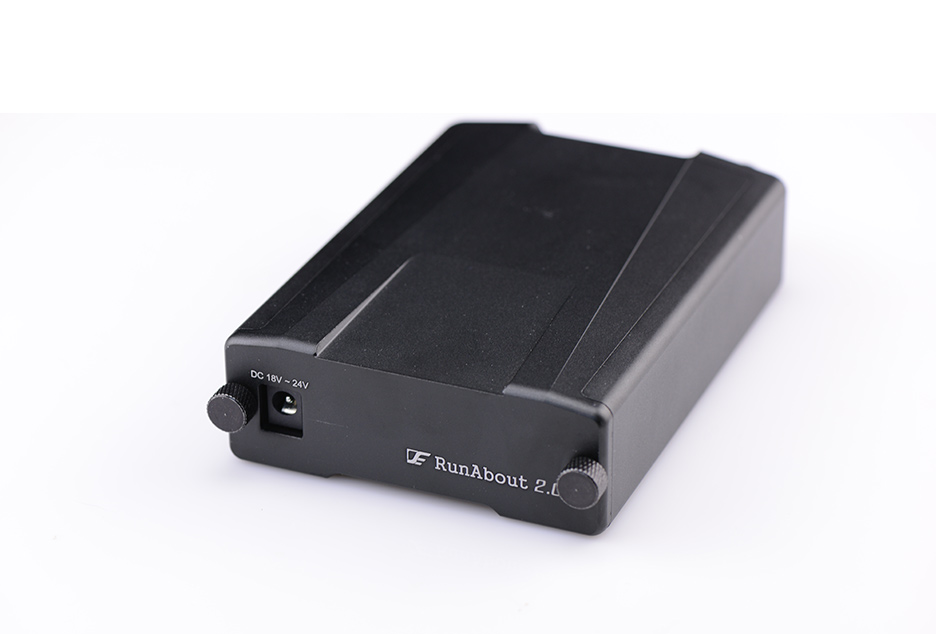

1×DC005 power jack for DC adapter

Frequency Response:20Hz-20KHz,±0.2dB

Maximum Current Output:0.25A

Maximum Voltage Output:5.5V RMS

Maximum Power Output,32ohm:950mW RMS per channel

Maximum Power Output,300ohm:100mW RMS per channel

Maximum Power Output,600ohm:50mW RMS per channel

THD:≤0.02%,20Hz-20KHz,1V RMS

IMD:≤0.03%,1V RMS

SNR:≥98dB,1V RMS,unweighted,gain=8.9dB

Crosstalk:≥95dB,20Hz-20KHz

Output Impedance:0.5ohm

Gain:2.8(8.9dB),4.6(13.3dB)

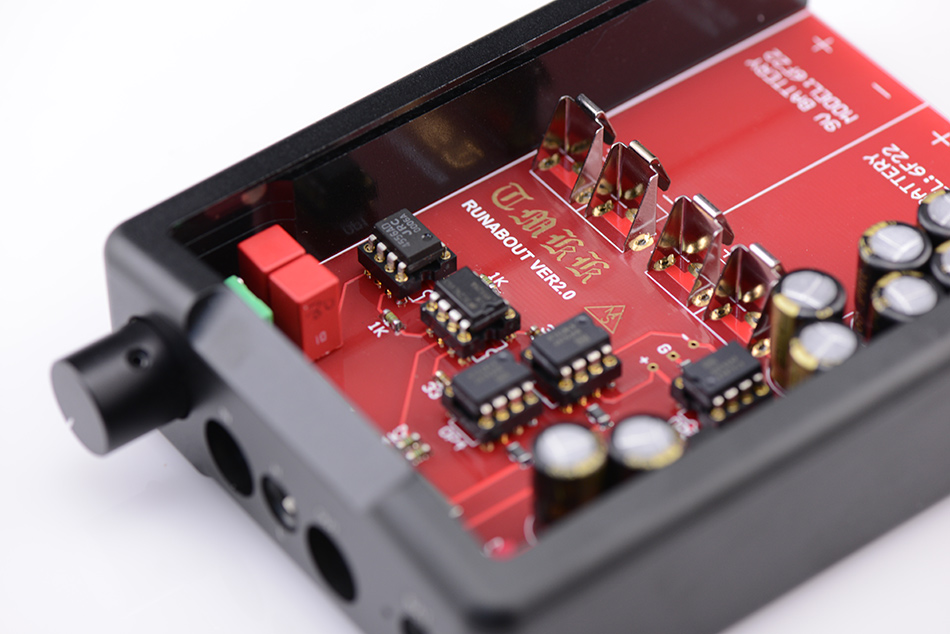

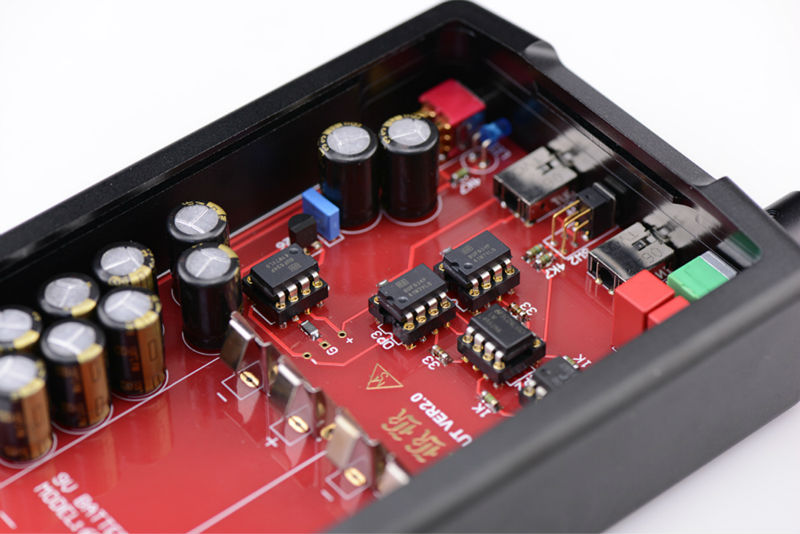

Topology:OP+BUF,precision virtual ground reference,isolated power supply

Power Supply:2×9V 6F22 Battery,or 18V DC adapter

Power Consumption:0.1W

Size:5.12×3.70×1.29(in)

Weight:570g(without battery)


______________________________________________________________________________________

We may ship your package by 4PX Express.

Because it can ship battery.

You can track it on en.4px.com








Model:                                                                 RunAbout 2.0

Connector Complement:                                     1×3.5mm stereo jack for Input     1×3.5mm stereo jack for Output    1×DC005 power jack for DC adapter

Frequency Response:                                          20Hz-20KHz,±

0.2dB

Maximum Current Output:                                 0.25A

Maximum Voltage Output:                                 5.5V RMS

Maximum Power Output,32ohm:                    950mW RMS per channel

Maximum Power Output,300ohm:                  100mW RMS per channel

Maximum Power Output,600ohm:                  50mW RMS per channel

THD:                                                                 ≤0.02%,20Hz-20KHz,1V RMS

IMD:                                                                 ≤0.03%,1V RMS

SNR:                                                                 ≥98dB,1V RMS,unweighted,gain=8.9dB

Crosstalk:                                                         ≥95dB,20Hz-20KHz

Output Impedance:                                         0.5ohm

Gain:                                                                2.8(8.9dB),4.6(13.3dB)

Topology:                                                        OP+BUF,precision virtual ground reference,isolated power supply

Power Supply:                                                 2×9V 6F22 Battery,or 18V DC adapter

Power Consumption:                                       0.1W

Size:                                                                 5.12×3.70×1.29(in)

Weight:                                                             570g(without battery)
